BRAND | Mayr |
Product | 120/899.000.01S |
Description | Safety valve |
Internal code | 4790475 |

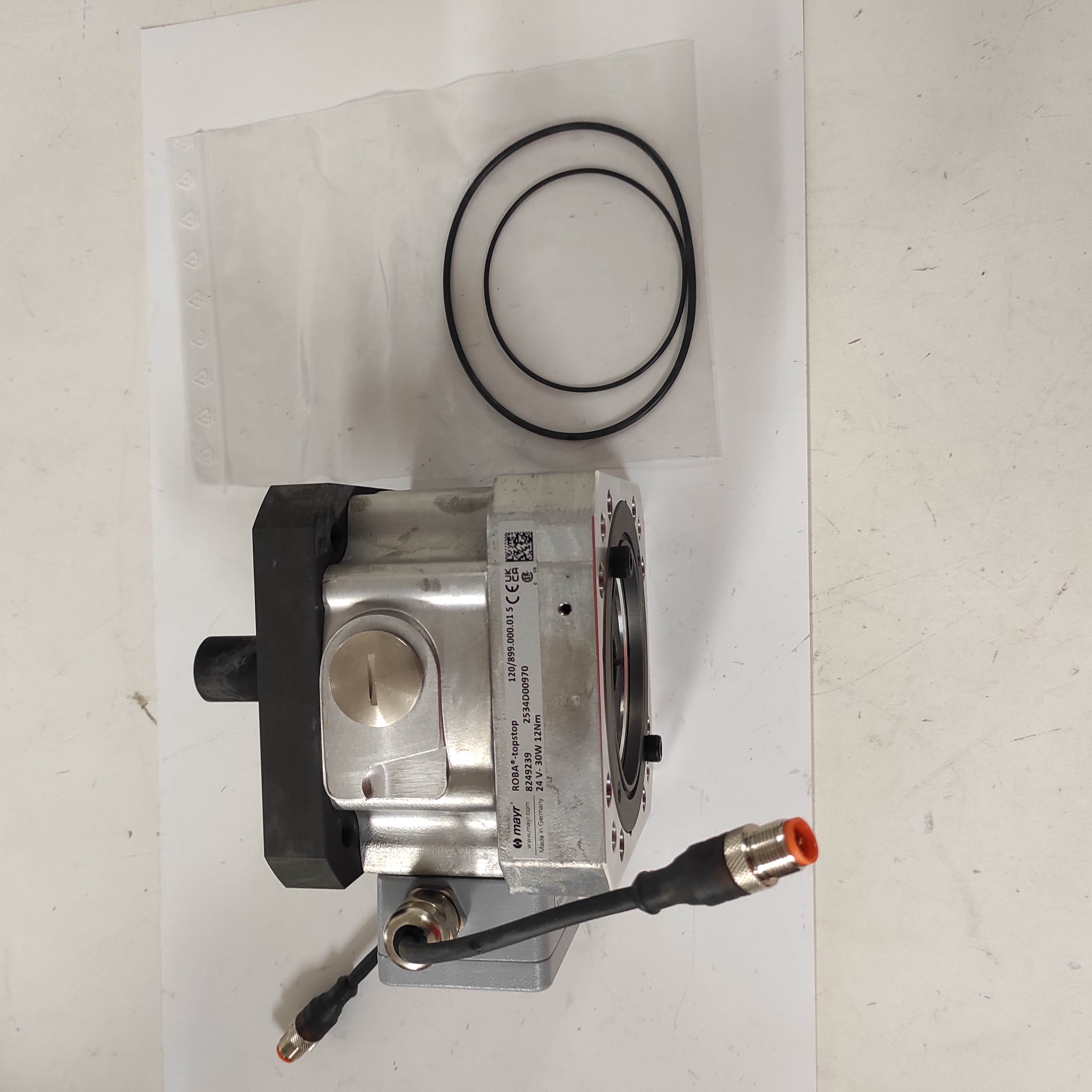

Technical specification | Roba-topstop size 120 wave Shaft (diameter x length): 24 x 50 mm Shaft fit: k6 Hole d1:19 mm Fit: F7 24 V magnetic coil flange housing (motor side) Z1 centering: 80 mm Fit: F8 Pitch circle: 100 mm with holes D9 mm bearing flange (output side) Z centering: 110 mm Fit: j6 Braking torque 12 Nm with ventilation monitoring, proximity switch PNP closer junction box with plugs extended protection class IP65 Special version according to our drawing no. E08503075000112 |
Please Contact Us to Order to offer competitive prices and delivery time for Mayr - 120/899.000.01S Safety valve number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
