| BRAND | Heinrich Kübler |
| Product | 60-ARV2"-VUU-L1 |
| Internal code | 3274042 |
| Weight | 1.4 |

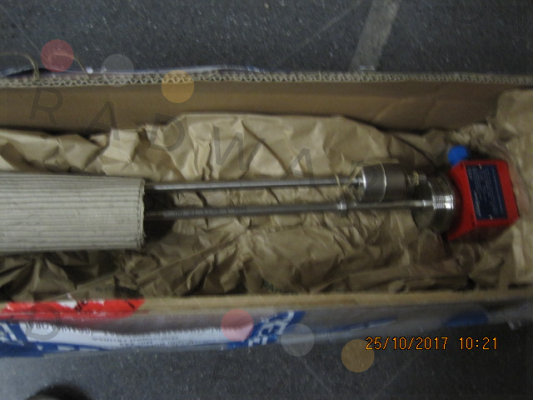

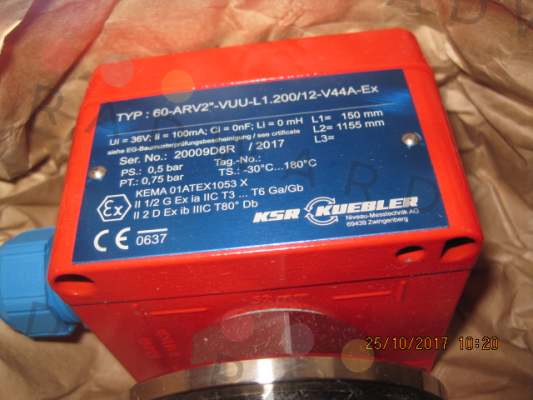

| Technical specification | 60-ARV2"-VUU-L1.200/12-V44A-Ex Magnetic Float Switch Type FLS-SBI Approval: Ex i; KEMA 01ATEX1053 X II 1/2G Ex ia IIC T3...T6 Ga/Gb Material: Stainless steel 316Ti (DIN 1.4571) Pressure: 0.5 bar Temperature range: -30°C up to 180°C Fluid density: 1000 kg/m³ Housing: Aluminum Ingress protection: IP65 Electrical connection: M20 x 1.5 mm with cable gland Process connection: Mounting thread downwards 2"BSP Switch function 1: Change-over (SPDT) 150 mm Switch function 2: Change-over (SPDT) 1155 mm Switch rating: Intrinsic safe circuit Ex i max. Ui 36V; Ii 100 mA; Ci = 0nF; Li = 0 μH Float: Stainless steel 316Ti V44A Number of floats: 1 pc Guide tube: OD 12 mm Insertion length (L): 1200 mm Float stop: Float collar |
Please Contact Us to Order to offer competitive prices and delivery time for Heinrich Kübler - 60-ARV2"-VUU-L1 number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
