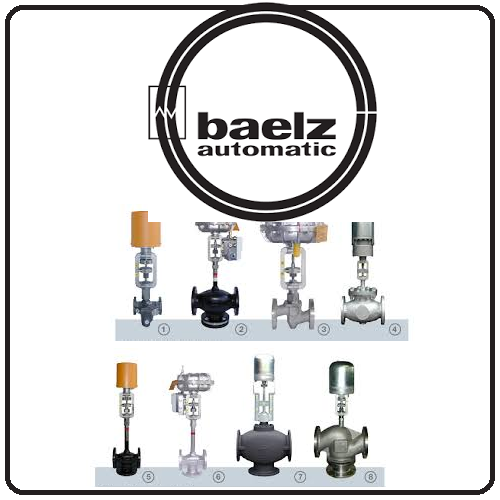

Baelz is offered by Impexron GMBH for years at reasonable prices and delivery time to United Kingdom . Check our web page for products from the brand Baelz regardless if they are not stated on our website, do not hesitate to contact us for all future product enquiries. Our products are delivered to your door with our wide distribution network throughout United Kingdom .
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Electronic modulating controller as a constant regulator 50-150 ° C, 230 V, 50/60 Hz
(Electronic modulating controller as Constant controller with digital actual value Celsitron baelz 2290-A-D with PI mode Panel mount Protection: Housing IP 42, terminals IP 00 Ambient. : 0 ... 50 ° C Temperature range: 0 ... 300 ° C Supply: 230 V, 50/60 Hz Dimensions: (W) 96 x 96 x 134 mm Weight approx: 0.8 kg Order No. 2290-032)
DN 50 PN 16 KVS 36 Housing material GJS-400-18-LT - JS1025 (GGG40.3) for max. 240 ° C / 4 bar - 120 ° C / 6 bar Order No. 340-020
Max. perm. Diff-pressure 16 bar 24 V, 50/60 Hz
Max. 350 ° C Max. perm. Diff-pressure 4 bar as a mixing valve 230 V, 50/60 Hz
ELECTRIC ENGINE VALVE, Kvs.3,8
PID three-step step controller
Actuator
Motorhubantrieb for modulating duty baelz for mounting on control valves to DN 125 with relapsing-force-related motor limit switches Thrust force: 1000 N Ty actuating speed: 18 mm / min. 50 Hz 24.6 mm / min. 60 Hz Protection: IP 42 Environmental conditions: max. 0 ... 50 ° C, 0 ... 75% RH not condensing with manual intervention Hood: Plastic Stroke: max. 22 mm Without body parts Power supply: 230 V, 50/60 Hz Weight approx: 2.2 kg
Motorhubantrieb for modulating duty baelz for mounting on control valves to DN 125 with relapsing-force-related motor limit switches Thrust force: 1000 N Ty actuating speed: 18 mm / min. 50 Hz 24.6 mm / min. 60 Hz Protection: IP 42 Environmental conditions: max. 0 ... 50 ° C, 0 ... 75% RH not condensing with manual intervention Hood: Plastic Stroke: max. 22 mm Without body parts Supply voltage: 24 V, 50/60 Hz Weight approx: 2.2 kg
Linear motorized actuator
Motorhubantrieb for modulating duty baelz 373-E02-10-18-S21 ... for mounting on control valves to DN 125 with relapsing-force-related motor limit switches Thrust force: 1000 N Ty actuating speed: 18 mm / min. 50 Hz 24.6 mm / min. 60 Hz Protection: IP 42 Environmental conditions: max. 0 ... 50 ° C, 0 ... 75% RH not condensing with manual intervention Hood: Plastic Stroke: max. 22 mm Without body parts Power supply: 230 V, 50/60 Hz Weight approx: 2.2 kg Order No. 373-E02-10-18-001
Baelz 373-E02 Serie: 5 F: 1000N v: 18¹ / 21¹ mm/min IP42 U: 230V 50¹ / 60² HZ P: 4,1¹ / 4,6² VA
alternative Model
50/60 c/s
Motorhubantrieb für Regelbetrieb
(Motorhubantrieb for modulating duty baelz 373-E07-20-18-S21 ... for mounting on control valves to DN 125 with relapsing-force-related motor limit switches Thrust: 2000 N Ty actuating speed: 18 mm / min 50 Hz 21.7 mm / min 60 Hz Protection: IP 42 Environmental conditions: max. 0 ... 50 ° C, 0 ... 75% r. F. with manual intervention Hood: Plastic Stroke: max. 22 mm Without body parts Power supply: 230 V, 50/60 Hz Weight approx: 2.2 kg baelz 373 E07-20-18-S21-230)
Engine lifting for control mode
Motorhubantrieb für Regelbetrieb
Force 2000 N230 V, 50/60 Hzwith body parts
(Motorhubantrieb for modulating duty baelz 373-E44-40-18- ... with relapsing-force-related motor limit switches Thrust force: 4000 N Positioning speed: 18 mm / min. 50 Hz 21.6 mm / min. 60 Hz Protection: IP65 Environmental conditions: max. -15 ... + 60 ° C with integrated Handnotverstellung metal hood Mounting column for S58: DN 32 ... 125 for fittings with u. without cooling pipe Stroke: max. 40 mm Power supply: 230 V, 50/60 Hz Weight (s) about: 7 kg baelz 373 E44-40-18-S58-230)
373-P21-027/376-109/86-202/373-H21-001
