| BRAND | Turck |
| Product | CABLE4X0.34-SH-PUR-BK-100M/TXL |

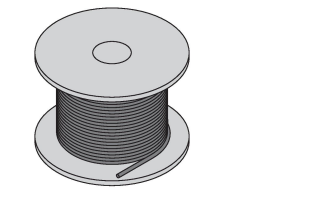

| Description | Actuator and Sensor Cable, PUR – Bulk Cable |
| Internal code | 766265 |
| Weight | 1 |
| Technical specification | Type CABLE4X0.34-SH-PUR-BK-100M/TXL ID 6627958 Number of Pins 4 Cable Cable diameter Ø 5.3 mm ± 0.20 Cable length 100 m Cable jacket PUR, Black Core insulation PP Core cross-section 4 x 0.34 mm² Arrangement of strands 42 x 0.1 mm Core colors BN, WH, BU, BK Electrical properties at +20 °C Test voltage 2000 V Current 4 A Insulation resistance > 30.5 MΩ/km forward resistance max. 57 Ω/km Mechanical and chemical properties Bending radius (stationary installation) ≥ 5 x Ø Bending radius (flexible use) ≥ 10 x Ø Bending cycles ≥ 5 million Admissible acceleration max. 5 m/s² Admissible travel path, horizontal 5 m (at 5 m/s²) Admissible travel path, vertical 2 m (at 5 m/s²) Admissible traversing speed 3.3 m/s Torsional stress ± 180 °/m Ambient temperature range (stationary) -50 °C…+80 °C Ambient temperature range (In motion) -25 °C…+80 °C Ambient temperature during drag chain operation |
Please Contact Us to Order to offer competitive prices and delivery time for Turck - CABLE4X0.34-SH-PUR-BK-100M/TXL Actuator and Sensor Cable, PUR – Bulk Cable number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
