BRAND | Ilme |

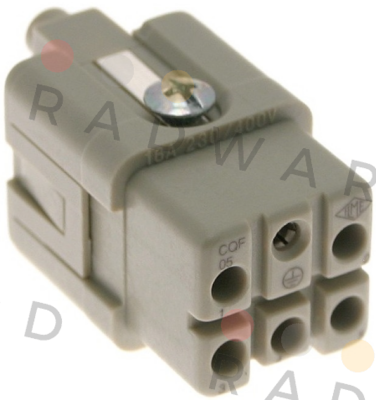

Product | CQF 05 |
Description | insert |
Internal code | 4492747 |

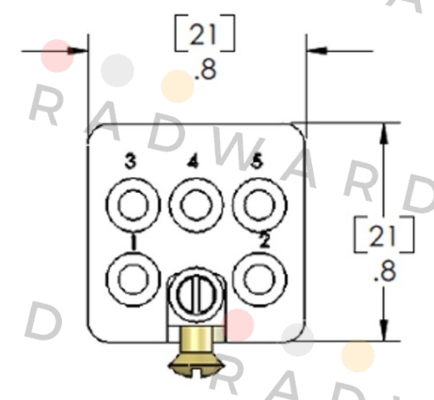

Technical specification | Housing- Thermoplastic Gender- Female Pin Count- 5 + Ground Rated Current- 16 Amps Rated Voltage- 600 V ILME Series- CQ Housing Type- Standard Operating Temperature- -40 C to 125 C (-40 F to 257 F) Insert Dimension- 21.21 Enclosure Dimension- 21.21 Termination- Crimp Pin Upper AWG- 12 Lower AWG- 20 Insulation Resistance- >= 10GOhm Mechanical Life- >= 500 Cycles Contact Resistance- <= 1mOhm Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger) Approvals- UL, CSA, CCC, GL, GOST |
Please Contact Us to Order to offer competitive prices and delivery time for Ilme - CQF 05 insert number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
