DAT3022  - Datexel United Kingdom  Sales

BRAND Datexel

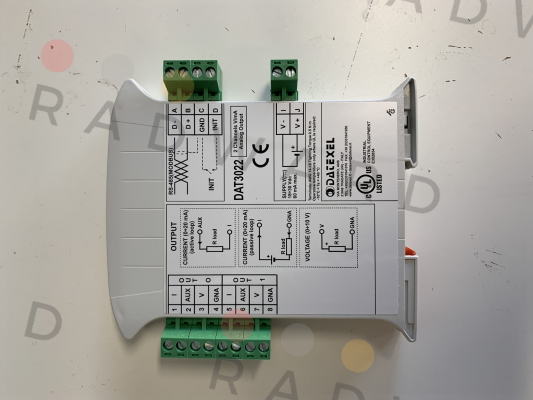

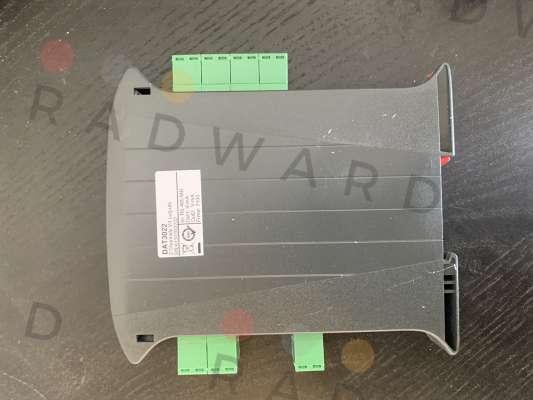

Product DAT3022
Description Modbus to 4-20mA Output converter
Internal code 247139
Weight 1
Custom code 90303330
Technical specification INPUT OUTPUT POWER SUPPLY Modbus RS232 4-20 MA Power Supply Voltage 18-30Vdc 0-10 Volts Reverse polarity protection 60Vdc CURRENT CONSUMPTION CONFIGURATION ISOLATION Between 30 and 100 mA PC Programmable Between Input/Comms/Power Supply 1500Vac. EMC HOUSING TEMPERATURE For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C Immunity EN 61000-6-2 Dimensions W x H x T 4" x 4 3/4" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C Emission EN 6100-6-4 100 x 120 x 22.5 mm Humidity (non condensing) 0-90% Weight 3 oz 90 g EMC HOUSING TEMPERATURE For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C Immunity EN 61000-6-2 Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" Storage Temperature -40°F +185°F-40°C +85°C Emission EN 6100-6-4 106 x 112x x 57 mm Humidity (non condensing) 0-90% Weight 7 oz 200 g

Please Contact Us to Order to offer competitive prices and delivery time for Datexel - DAT3022 Modbus to 4-20mA Output converter number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.

WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
