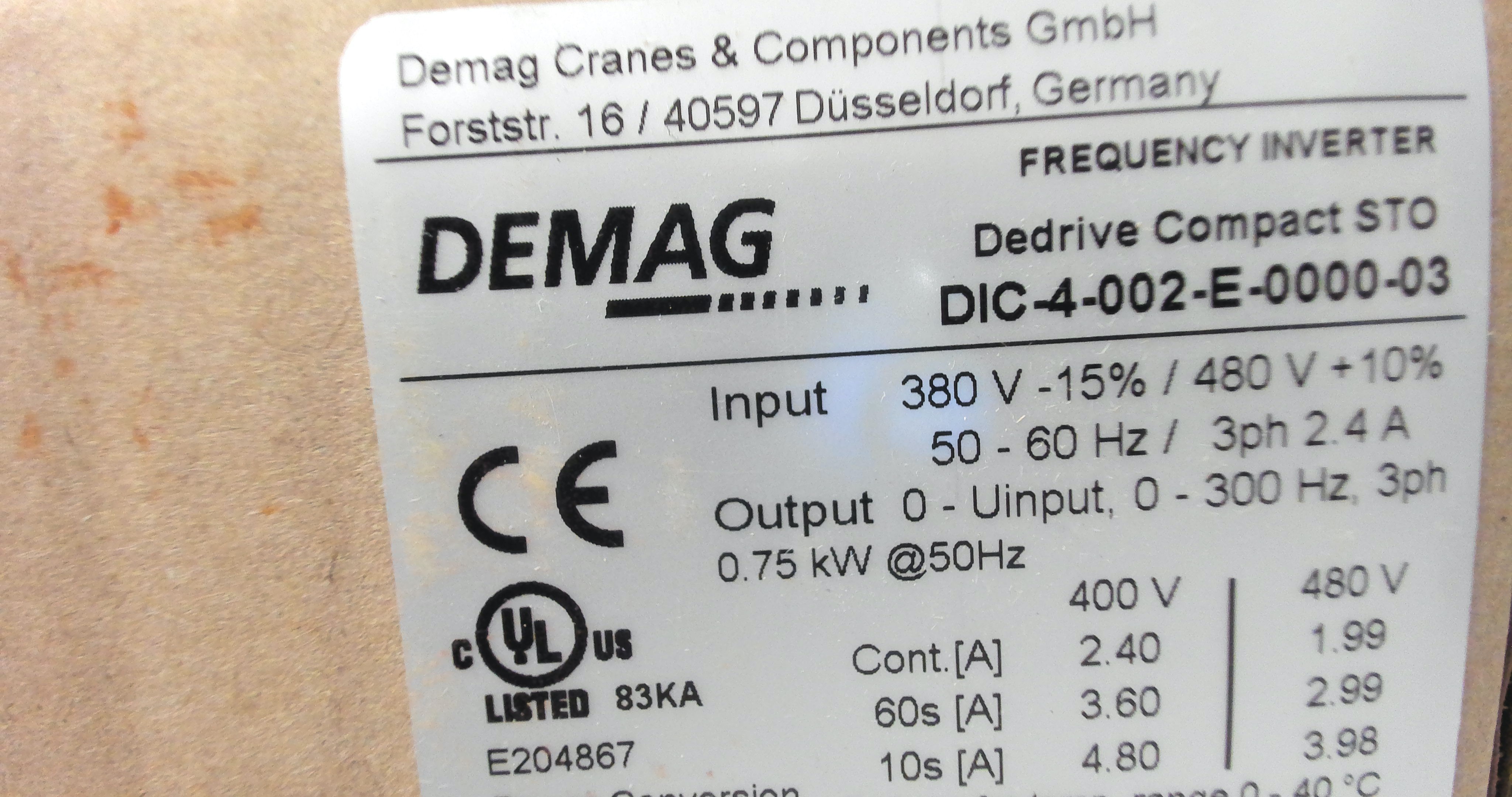

BRAND | Demag |
Product | DIC-4-002-E-0000-03 |
Description | frequency converter |
Internal code | 4871216 |
Technical specification | Dedrive Compact STO igital two-point inverter with voltage link for one and four-quadrant operation with integrated Brake chopper for resistance braking. Integrated “Safe Torque Off” (STO) safety function in accordance with EN 61800-5-2. Fulfilled the requirements Cat.3, PLd according to EN ISO 13849-1 and SIL2 according to IEC 61508. Technical data: Line voltage: 3 x 380 - 480 V (+10/-15%) Network frequency: 50/60 Hz (+10/-10%) Motor shaft power: 0.75 kW Output voltage: 3 x 0 - line voltage V Output frequency: 0 - 300 Hz depending on the switching frequency Output current: 2.4 A at 2 to 8 kHz Overload factor at 2 and 4 kHz: 1.5 for 60 s; 2.0 for 10 s (cycle 10 min) Modulation frequencies: 2, 4, 8, 12, 16 kHz (note current reduction) Protection class: IP 20 Operating temperature: 0 - 40 °C Installation height: 0 - 1000 m Dimensions: 60/190/175 mm width/height/depth Installation position: vertical Line voltage: 3 x 400 V Output current: 2.4 A at 40 °C ambient temperature and 4 kHz modulation frequency Overload factor: 1.5 for 60 s (cycle 10 min.) 2.0 for 10 s (cycle 10 min.) Operating temperature: 0 °C/40 °C Installation height: 0/1000 m specification: Type: Dedrive Compact STO DIC-4-002-E-0000-03 |
Please Contact Us to Order to offer competitive prices and delivery time for Demag - DIC-4-002-E-0000-03 frequency converter number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
