Sale of Electro Adda products in United Kingdom

Electro Adda is offered by Impexron GMBH for years at reasonable prices and delivery time to United Kingdom. Check our web page for products from the brand Electro Adda regardless if they are not stated on our website, do not hesitate to contact us for all future product enquiries. Our products are delivered to your door with our wide distribution network throughout United Kingdom .
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

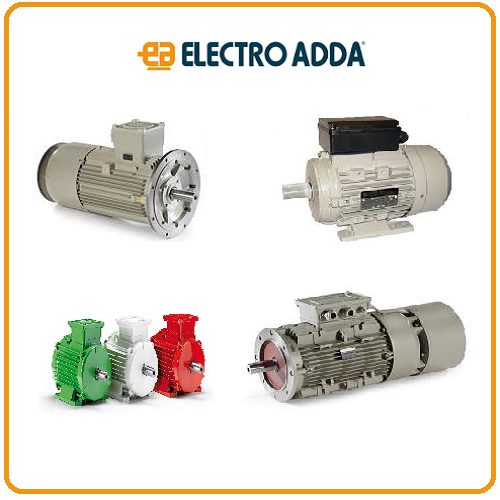

Brand products Electro Adda

1EC34-5

Serial No. / Year of built ID 55 Additional details & attachments 1485-1785 RPM 250 HP/290 KW 60 HZ

1TB09L2100001, TYPE TFCP 90 L-2

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 83.2% Size 90 L, 2.2 kW, S1, IP 55, Iso.- class F, B3 / B5 / 200 mm. 2855 1 / min, 230/400 Volt, 50 Hz Shaft end 24 x 50 mm, Terminal box on top, metric gland, 3 integrated PTC thermistors, RAL 7030, weight 13.2 kg

1TB09L2100002

(Three-phase asynchronous m. Squirrel cage design in IE2 efficiency 83.2% Type TFC 90 L-2, size 90 L, 2.2 kW, S1, IP 55, Iso. class F, B5 / 200 mm. 1 2855 / min, 230/400 volt, 50 Hz shaft end 24 x 50 mm, metric cable gland, with 3 integrated PTC thermistors, RAL 7030, kg 16.80)

1TB09L2200002, TYPE TFC 90 L-4

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 82.8% Size 90 L, 1.5 kW, S1 IP 55, Iso. class F, B5 / 200 mm, 1420 1 / min, 230/400 Volt, 50 Hz, Shaft end 24 x 50 mm, metric gland, 3 integrated PTC thermistors, RAL 7030, Weight 17 kg

1TB09S2100002

Drehstrom-Asynchronmotor m. Käfigläufer

1TB10L5200000

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 84.3% Type TC 100 LA-4 size 100 L,  2.2 kW, S1, IP 55, Iso. class F,  B3, 1425 1 / min, 230/400 Volt, 50 Hz,  Shaft end 28 x 60 mm,  Terminal box on top,  metric gland, 3 integrated PTC thermistors,  RAL 7030 Weight 21 kg

1TB10L5200014

(Three-phase asynchronous m. Squirrel cage Execution in IE2 Efficiency 84.3% Type TFC 100 LA-4, size 100 L, 2.2 kW, S1, IP 65, Iso. class F, Type B14 / 160 mm 1425 1 / min, 230/400 Volt, 50 Hz, Shaft end 28 x 60 mm, 3 integrated PTC thermistors, metric gland, RAL 7030, weight 19.5 kg)

1TB13S4100000, TC 132 SB-2

Three-phase asynchronous m. Cage rotor design in IE2 88.1% efficiency of size 132 S, 7.5 kW, S1, IP 55, Iso.- class F, B3, 2875 1 / min, 400/690 Volt, 50 Hz Shaft end 80 mm x 38 Terminal box on top, metric gland, 3 integrated PTC thermistors, RAL 7030 C2983603

2TB16M6200002

(Three-phase asynchronous m. Cage rotor design in IE2 Efficiency 89.8% Type TFCP 160 M-4, M size 160, 11 kW, S1, IP 55, Iso.- class F, B3 / B5 / 350 mm, 1450 1 / min, 400/690 Volt, 50 Hz Shaft end 42 x 110 mm, GG, Terminal box on top, with metric cable gland, 3 integrated PTC thermistors, RAL 7030, weight about 122 kg)

2TB18L6200000

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 91.6% Type TC 180 L-4, L size 180, 22 kW, S1, IP 55, Iso. class F, B3, 1445 1 / min, 400/690 Volt, 50 Hz Shaft end 48 x 110 mm, GG Terminal box *** *** right with metric cable gland, 3 integrated PTC thermistors, RAL 7030, weight about 192 kg

2TB20L8200002

Three-phase asynchronous m. cage rotor

2TB20L8300004

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 90.9% Type TFC 200 L-6, L size 200, 22 kW, S1, IP 55, Iso.- class F, B3 / B5 / 400 mm, 970 1 / min, 400/690 Volt, 50 Hz Shaft end 55 x 110 mm, GG, Terminal box on top, with metric cable gland, 3 integrated PTC thermistors, RAL 7030, Weight 290 kg.

2TB22M6300002

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 91.7% Type TC 225 M-6, M size 225, 30 kW, S1, IP 55, Iso.-class F B3, 980 1 / min, 400/690 Volt, 50 Hz Shaft end 60 x 140 mm, GG Terminal box on top, with metric cable gland, 3 integrated PTC thermistors, RAL 7030, weight 294 kg.

2TB22S2200005, TFC 225 S-4

SUCCESSION MODEL in, IE2 version Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 92.7% Type TFC 225 S-4, S Size 225, 37 kW, S1, IP 55, Iso. class F, B5 / 450 mm, 1480 1 / min, 400/690 Volt, 50 Hz Shaft end 60 x 140 mm, GG with metric cable gland, built 3 Bimetallic Thermofühlernm RAL 7030, weight about 341 kg

2TB25M4300001

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 92.2% Type TC 250 M-6, Size 250 M, 37 kW, S1, IP 55, Iso. class F, B3, 980 1 / min, 400/690 Volt, 50 Hz Shaft end 65 x 140 mm, GG Terminal box on top, with metric cable gland, 3 integrated PTC thermistors, RAL 7030, weight 395 kg.

2TB31S8200001

Three-phase asynchronous m. cage rotor Execution in IE2 Efficiency 94.5% Type TFCP 315 S-4, S size 315, 110 kW, S1, IP 55, B3 / B5 / 660 mm, 1480 1 / min, 400/690 Volt, 50 Hz Shaft end 80 x 170 mm, RAL 7030, GG 3 integrated PTC thermistors, Terminal box on top, with metric cable gland, Insulation class F,

4506715 FC250MT

kW 55. 4 poles V1 V.400/690.50 roller bearing flange with lubricators rain canopy bimetallic

6311-2Z

Ball bearings for the non-drive end (motor fan side)

6312-2Z

Ball bearings for the drive side

7KW-400V-17,3A—720R/MIN ,30KW-400V-59A-1465R/MIN

380V-C200LT-8/4 IP:55—I.CI:F---S:1 Double-speed electric motor 30 kw ,TERMOPROTETTORİ BIMET X VENTİLOFORE MOTOR

A3804443

motor,

B14M28

SN# FT1A71A2 3PH 50/60 HTZ TEFC 3288 RPM 2 POLE

B14-OBSOLETE!! Replaced with "1TB10L5200014"

(Three-phase asynchronous m. Squirrel cage Execution in IE2 Efficiency 84.3% Type TFC 100 LA-4, size 100 L, 2.2 kW, S1, IP 65, Iso. class F, Type B14 / 160 mm 1425 1 / min, 230/400 Volt, 50 Hz, Shaft end 28 x 60 mm, 3 integrated PTC thermistors, metric gland, RAL 7030, weight 19.5 kg)

Contact us for request
