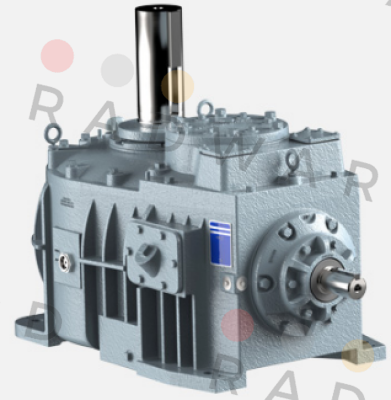

BRAND | Amarillo Gear |
Product | F85 |
Description | GEARBOX |
Internal code | 4686187 |
Technical specification | GEARBOX,,F85,FAN DRIVE,3.75:1 WO/NT No: 62525534 0220 0010 Model 85 Series FAN DRIVE Dimensions 13.1/4 x 11 x 23.1/4 in Diameter, shaft 1.249 in (+/-0.0005) Size 3/4 in - 10NC (TAPPED HOLE) Size, connection 1/2 in NPT (OIL FILL) Size, connection 1/2 in NPT (OIL DRAIN) Size, horizontal keyway 5/16 x 5/32 in Size, vertical keyway 1/2 x 1/4 in Ratio 3.75:1 Rotation CLOCKWISE (BOTH SHAFT) Thrust capacity 1750 lb Type, oil ISO 220 / AGMA 5 OR 5S NO EP ADDITIVES Oil capacity 1 gal (4 l) Service factor 2 |
Please Contact Us to Order to offer competitive prices and delivery time for Amarillo Gear - F85 GEARBOX number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
