FX86.AXHTN2HX3DXX - Vega United Kingdom Sales

BRAND	Vega
Product	FX86.AXHTN2HX3DXX
Description	TDR Sensors
Internal code	3363627
Weight	17.81
Custom code	90261029

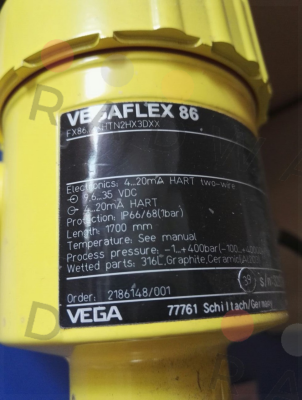

Technical specification	for continuous level and interface measurement of liquids Scope A: Europe Approval X: for explosion-free areas Design/Material H: replaceable rod (ø16mm)/316L Probe: Mounted Length (from sealing surface): 1700,000 mm Process Connection/Material TN: Thread G1½ PN400, DIN3852-A/316L Gasket/Second line of defense/ Process temperature 2: ceramic graphite/with/-196... +450°C Elektronik H: 2-wire 4... 20 mA/hard Auxiliary electronics X: without Optional surge protection: without Enclosure/Degree of protection 3: Aluminum single chamber/IP66/IP68 (1bar) Cable length: 5,000 m Cable inlet/Connection D: M20x1.5/Blanking plug Display/Control Module PLICSCOM X: without Certificates X: No Operating Instruction: TR - Turkish Number of operating instructions: 1 Customized: No Linearization: No Min. process pressure in bar ፦1,000 Max. process pressure in bar: 400.0

Please Contact Us to Order to offer competitive prices and delivery time for Vega - FX86.AXHTN2HX3DXX TDR Sensors number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
