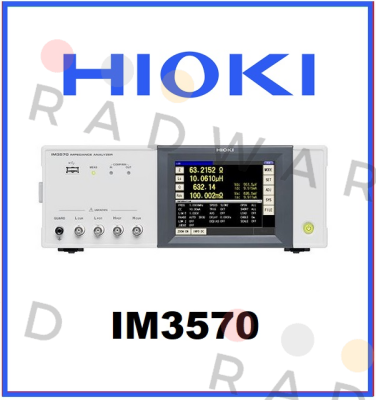

Buy IM3570 from Hioki in United Kingdom

BRAND	Hioki
Product	IM3570
Description	Impedance Analyzer
Internal code	314150
Weight	5.8
Technical specification	Modes LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode Parameters Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q Range 100 mΩ to 100 MΩ, 12 ranges (All parameters are determined according to Z) Frequency 4 Hz to 5 MHz (5 digits setting resolution, minimum resolution 10 mHz) Signal Level Normal mode: V mode/CV mode: 5 mV to 5 Vrms (up to 1 MHz) 10 mV to 1 Vrms (1.0001 to 5 MHz), 1 mVrms steps CC mode: 10 μA to 50 mArms (up to 1 MHz) 10 μA to 10 mArms (1.0001 to 5 MHz), 10 μArms steps Low impedance high accuracy mode: V mode/CV mode: 5 mV to 1 Vrms (up to 100 kHz), 1 mVrms steps CC mode:10 μA to 100 mArms (100 mΩ and 1Ω ranges of up to 100 kHz), 10 μArms steps Time 0.5 ms (100 kHz, FAST, display OFF, representative value) General Specifications Display Range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only θ : ±(0.000° to 180.000°), D : ±(0.000000 to 9.999999) Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%) Basic Accuracy Z ±0.08% rdg. θ: ±0.05° Output Impedance Normal mode: 100 Ω, low impedance high accuracy mode: 10 Ω Display 5.7" color TFT, display can be set to ON/OFF Functions DC bias measurement, comparator, BIN measurement (classification), panel loading/saving, memory function Interfaces EXT I/O (handler), RS-232C, GP-IB, USB communication, USB memory, LAN Power Supply 90 to 264 V AC, 50/60 Hz, 150 VA maximum Dimensions 12.99 x 4.69 x 12.09" (330 x 119 x 307 mm)

Discover the superior quality and performance of the Hioki IM3570 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.

The IM3570 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.

Key Features of IM3570 :

High Performance: Engineered to deliver exceptional results.
Durable Construction: Built with high-quality materials for long-lasting use.
Innovative Design: Incorporates the latest technology for enhanced efficiency.
Cost-Effective: Offers great value for money with competitive pricing.

At RADWARD LTD , we offer the IM3570 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.

Why Choose RADWARD LTD ?

Expert Assistance: Get help from our knowledgeable team for all your product-related questions.
Competitive Prices: We offer some of the best prices in the market.
Fast Delivery: Benefit from our efficient delivery network for quick turnaround times.
Customer Satisfaction: Our commitment to customer service ensures a great buying experience.

Get Your Quote Today! Ready to enhance your operations with the IM3570 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.

Important Notice: While we supply Hioki products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Where can I buy IM3570 by Hioki in United Kingdom?

You can purchase IM3570 by Hioki from RADWARD LTD. We serve customers across United Kingdom, offering competitive prices and reliable service.

What is the price of the IM3570?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Hioki in United Kingdom?

While we are not the official distributor or seller of Hioki in United Kingdom, we source our products from reliable channels and offer you original Hioki equipment at competitive prices.

How can I access IM3570 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for IM3570 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for IM3570?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
