| BRAND | Lammers |

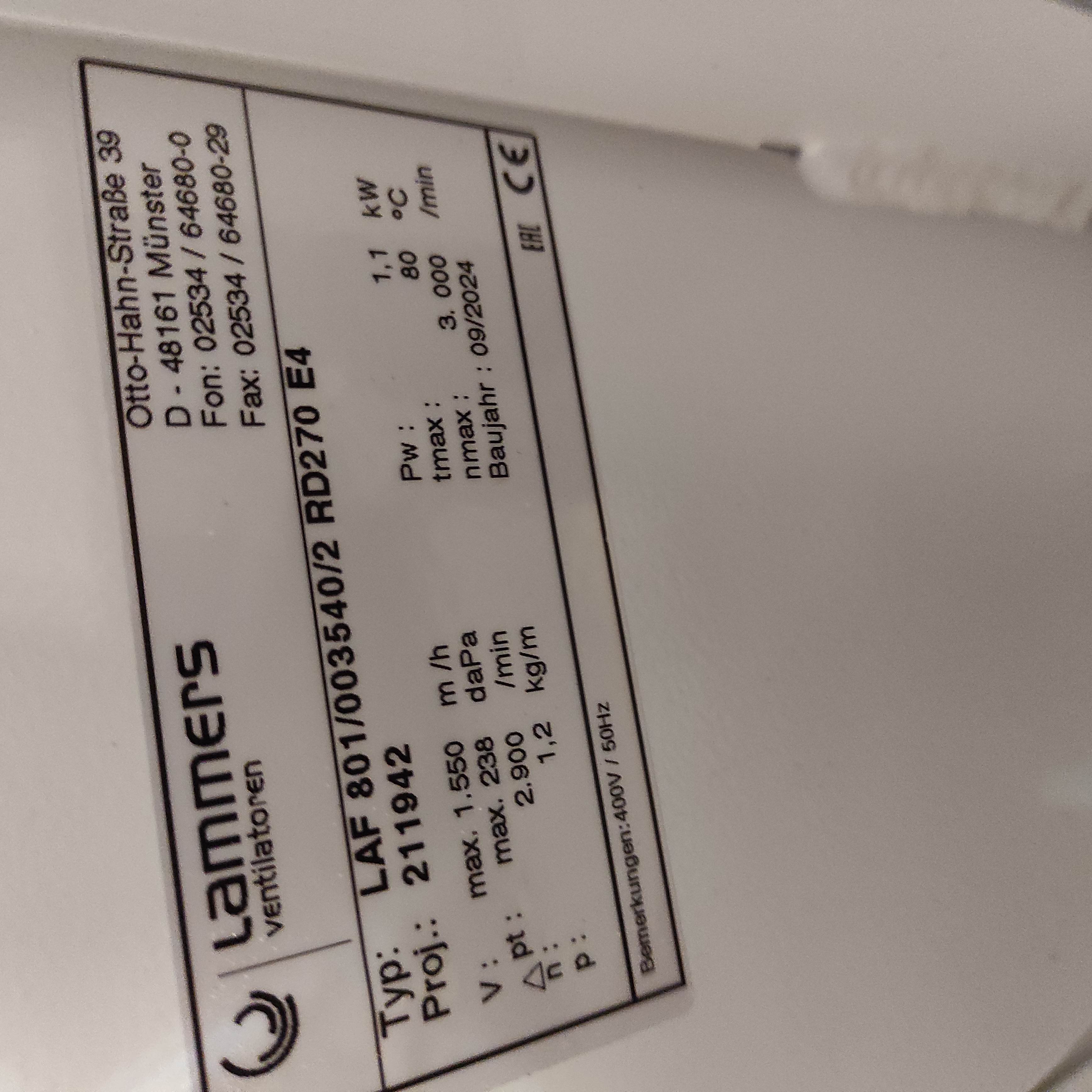

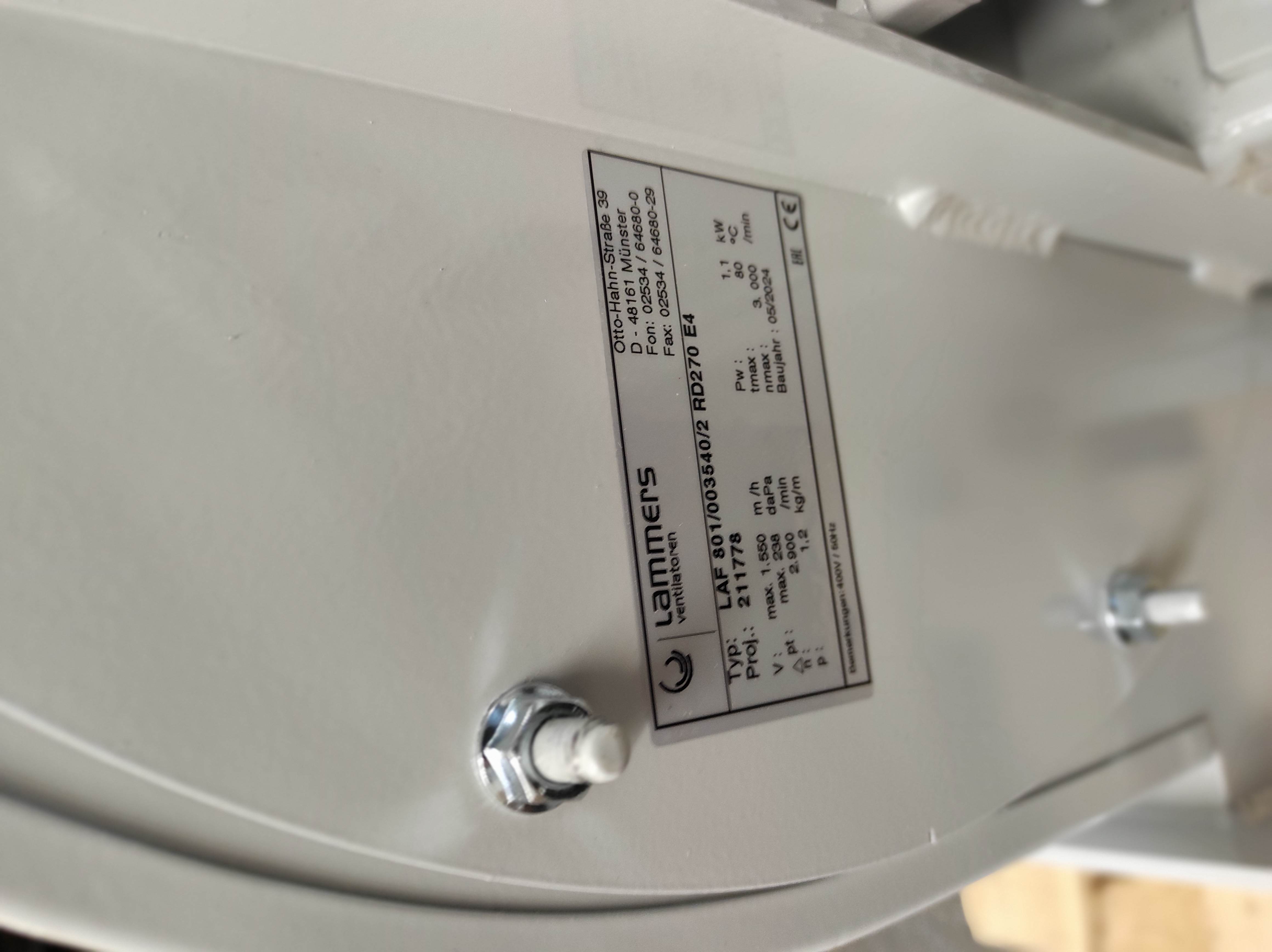

| Product | LAF 801/003540/2 RD270 E4 |
| Description | centrifugal fan |
| Internal code | 4295393 |
| Custom code | 84145935 |

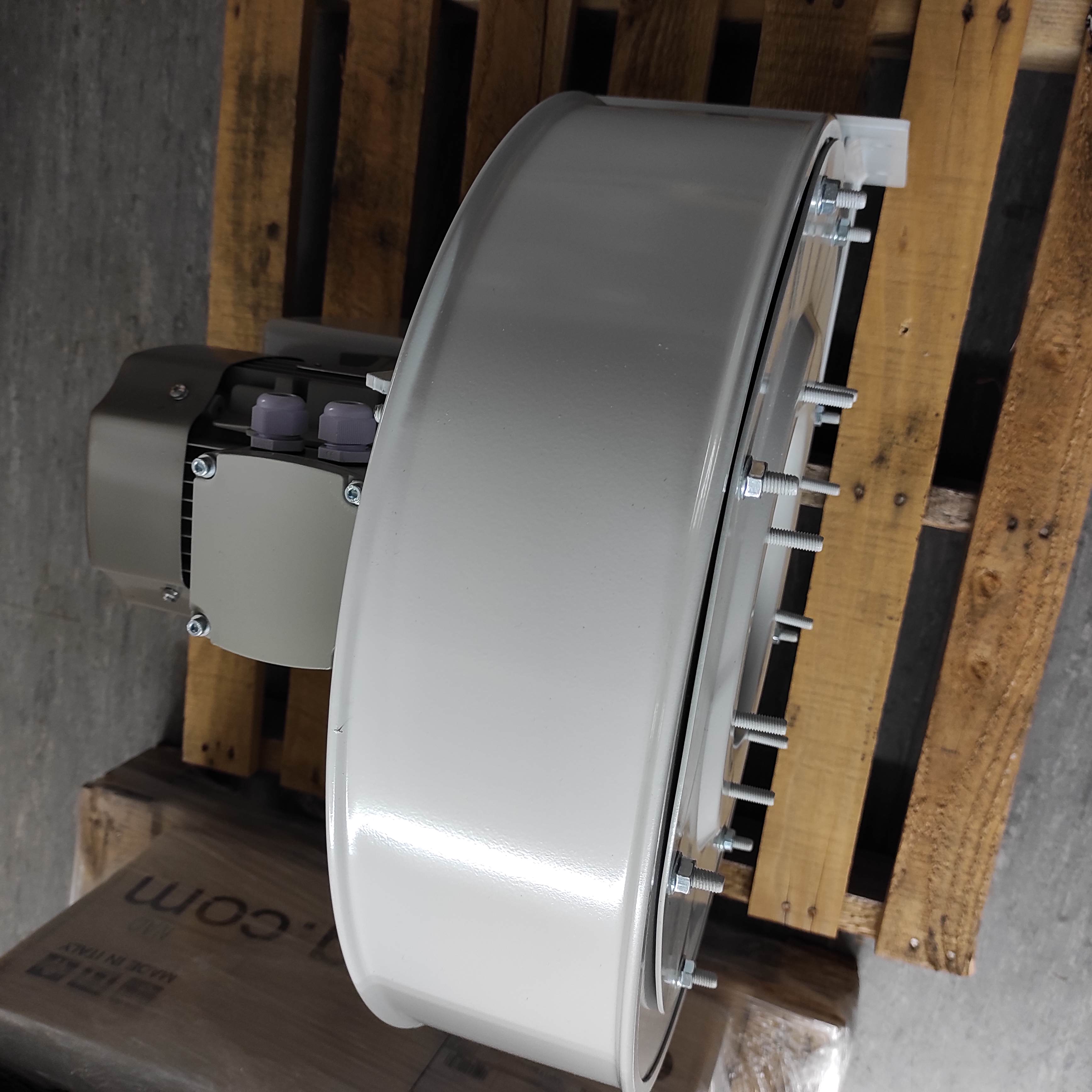

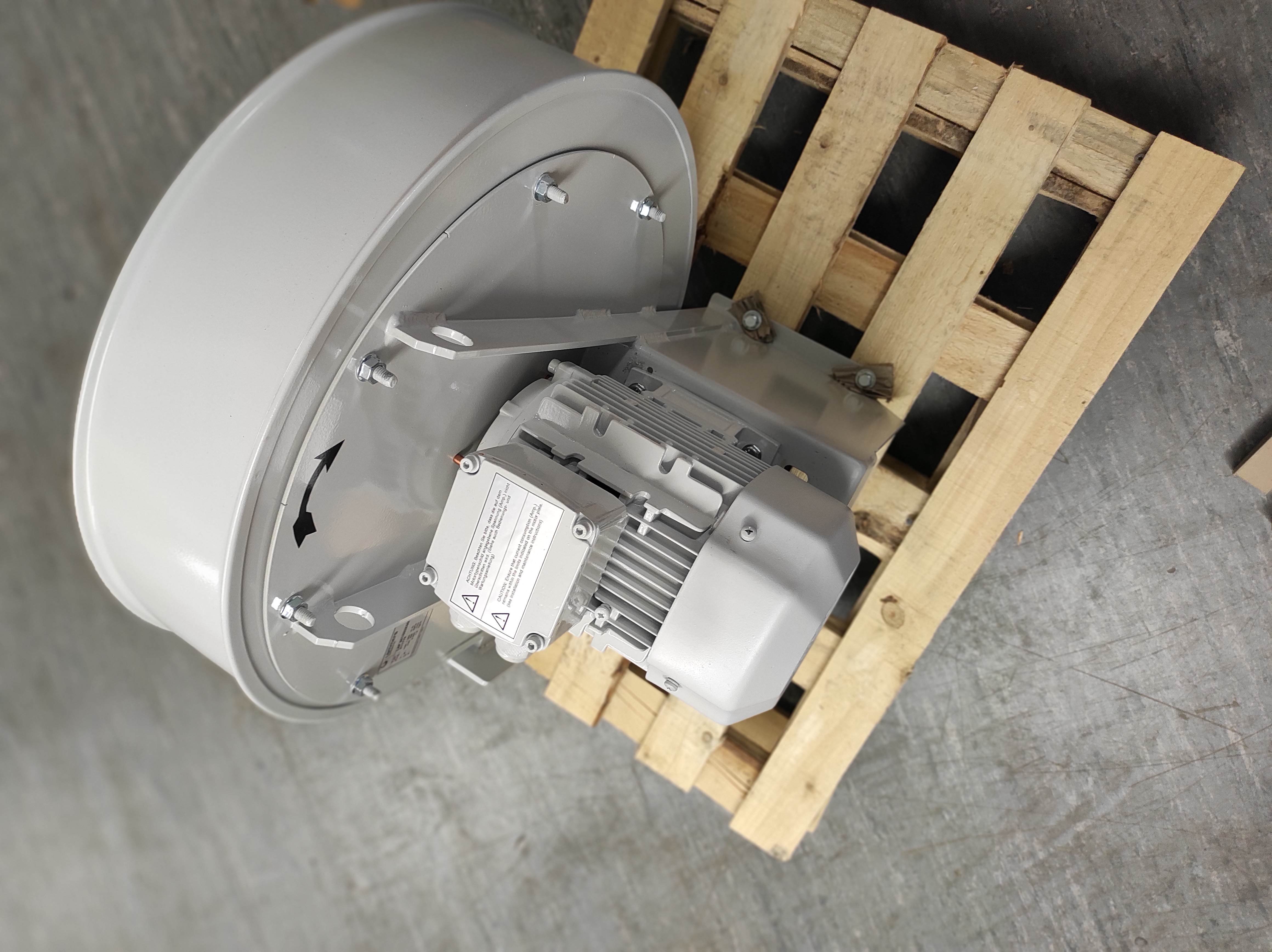

| Technical specification | Centrifugal fan in sturdy sheet steel design, one-sided sucking, with round suction opening and trestle or the Flange for mounting the motor. DIN wheel/ ISO 1940/Q 6.3 balanced. Ventilator incl. three-phase standard motor, (Fabr. LAMMERS, o.v.) Performance data in accordance with DIN 24166. special version: Trestle notch to L=190mm Direction of rotation: right Case position: 270° Air flow rate: 1550 m³/h (max.) Pressure (total): 238 daPa (fully throttled) Fan speed: 2900 rpm Motor power: 1.1 kW Voltage/frequency: 400V/50Hz Degree of protection/ISO-KL: 55/F Sound pressure level: approx. 69 (dB (A) (radiation noise) |
Please Contact Us to Order to offer competitive prices and delivery time for Lammers - LAF 801/003540/2 RD270 E4 centrifugal fan number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
