| BRAND | Ascon |

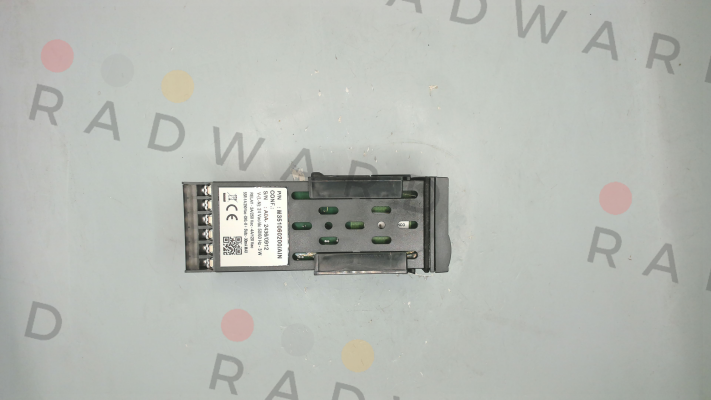

| Product | M3-5106-0020 |
| Description | Control thermostat |
| Internal code | 4585142 |
| Technical specification | thermostat series M3, M3-5106-0200/9999 (unconfigured) Supply voltage: 18... 28 V 48/63 Hz and 20... 30 Vdc output OP1/3: relay (2A/250V normally open) output OP2: relay (2A/250V normally open) or logic (0/5VDC, 30mA) not electrically isolated adjustable via internal jumpers Output OP4: not available Serial interface: none Interface protocol: without Can be freely configured as follows: input: PT100; thermocouple L, J, T, K, S; 0 (10)... 50 mV DC, 0 (4)... 20mA via shunt OP1/OP3 control or alarm output Output OP2: control or alarm output Control: ON/OFF or PID, heating or cooling, Heating/cooling Assignment: 1 output to control and 2 outputs as alarm O. 2 outputs for control and 1 output as alarm Special features: with integrated transmitter supply Options: current transformer input, transmitter supply, Analog output (PV), serial interface |
Please Contact Us to Order to offer competitive prices and delivery time for Ascon - M3-5106-0020 Control thermostat number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Temperature controllers X1 (unconfigured) A.Nr .: G.Nr .: Front: Supply voltage: 100 ... 240 V, 50/60 Hz Ausqanqe: 3 relay (2 Schliefser, 1 PDT) and 1 logic output Serial interface: no Interface protocol: no Actual value OP4: no Operating Instructions: German Front color: dark gray Input: * PT100; Thermocouple I, J, T, K, S, B, N, R, W, Special; 0 (10) .. 50 mV DC * Current transformer input for the Lastkreisuberwachung Control: 10 ... 100A (sec 50/100 mAl. PID, heating 1 Kuhlen,
digital process controller
Temperature controllers X3 front 96x48mm Power supply 100 ... 240 V, 50/60 Hz Outputs 3 relay (2 make 1 change) and 1 logic output Serial interface without Interface protocol without Actual value OP4 without manual English Front color dark gray Input PT100 thermocouple type I, J, T, K, S, 0 (10) ... 50 mV DC * Current transformer input for the Lastkreisueberwachung * 3 Logikeingaenge Control PID heating or Kuehlen
temperature controller series X3
unconfigured Digital Controller Series X3 (
thermostat X3 series
(Unconfigured) digital controllers of the series X3
Digital controller
Temperature controllers X5
CONTROLLER, PROCESS:FOR ECIS STEAM BOILER, 1/8 DIN-48X96 MM, 100-240 V, 5 0-60 Hz, 5W
Controller
Temperature controllers X5
LCD SCREEN
Rules Series Gamma1
XE301/9999-9 replaced by 90251920 XE-301/9
temperature controller
Digital controller
