| BRAND | TE Connectivity (Tyco Electronics) |

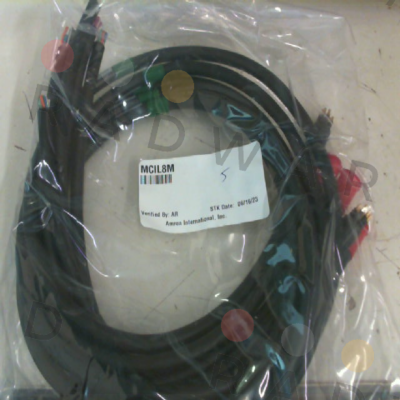

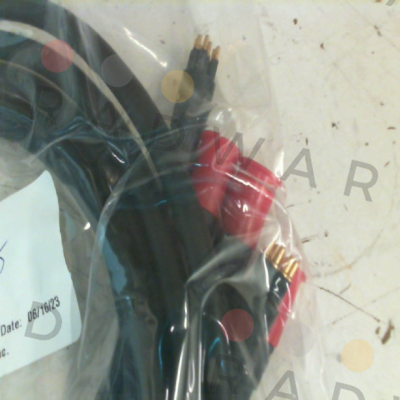

| Product | MCIL8M |
| Description | Micro In-Line Connector |
| Internal code | 4795052 |
| Custom code | 85444290 |
| Technical specification | Molded Body: Neoprene Contacts: Brass-Gold Plated Guide Pins: Stainless Steel In-Line Cable: 8 Pin: Neoprene #20 AWG In-Line Cable Length: 3.28 ft (1 m) Open Face Pressure: 10,000 PSI (Approx. 689 Bar) Optional And Needs To Be Specified Dummy Cap Recommended Above 100 PSI Mated Pressure: 10,000 PSI (Approx. 689 Bar) Voltage Rating 8 Pin: 300 VDC Current Rating: 3 Amps Per Contact Insulation Resistance: >200 Megohms @ 300 VDC Contact Resistance: <0.01 Ohms Air Mate: >1,000 Cycles Underwater Mate: >500 Operating Temperature: 25° To 140°F (-4° To 60°C) Mates with: MCIL8F and MCBH8F Dummy Connector Mate: MCDC8F Connector Pin: 8 Length 0.75 in. Width: 0.62 in. |
Please Contact Us to Order to offer competitive prices and delivery time for TE Connectivity (Tyco Electronics) - MCIL8M Micro In-Line Connector number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
