| BRAND | Interroll |
| Product | MI-DM0080 DM0803-AAA01D0U0LJH-600mm |

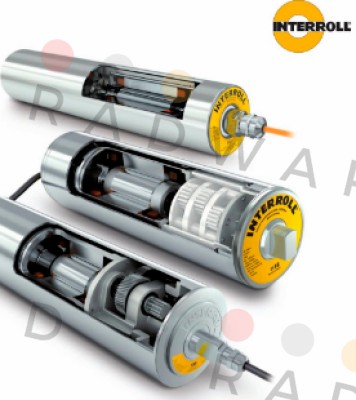

| Description | Motor |
| Internal code | 4842938 |
| Technical specification | Product Name DM 0080 Asynchronous 3-Phase Certification cRUus UL Certified IP Rating 69K Shell Length (SL) 23.35 " Face Width (FW) 23.62 " Between Frames (EL/LW/BF) 23.82 " Overall Length (AGL) 24.80 " Poles 2 Power 0.19 hp Torque [Nm] 18.8 Belt Pull Force 462 N Gear Ratio (i) 53.63 Gear Material Steel: 16MnCr5 / AISI 5115 Velocity at Frequency 1 54 fpm Frequency 1 60 Hz External Wiring Diagram M34 High Voltage 460 V Low Voltage 230 V Current, High Voltage 0.37 A Current, Low Voltage 0.63 A Velocity at Frequency 2 44 fpm Frequency 2 50 Hz High Voltage 2 400 V Low Voltage 2 230 V Shell Material Steel: St37-2 / AISI 1015 Shell Diameter (A) 3.21 " Shell Diameter (B) 3.17 " Shell Shape Crowned (Standard) Housing A Feature Standard Housing B Feature Standard Housing A Material ALU: EN-AC43400 / AL239 Housing B Material ALU: EN-AC43400 / AL239 Shaft A Shape Replacement 80i Standard Shaft B Shape Replacement 80i Standard Shaft A Material Stainl. Steel: 1.4305 / 303 Shaft B Material Stainl. Steel: 1.4305 / 303 Shaft A Flat Width (F) 0.53 " Shaft B Flat Width (F) 0.53 " Shaft A Flat Length (C) 0.49 " Shaft B Flat Length (C) 0.49 " Oil Type Mineral Oil Electrical Connection Straight Connector Electrical Connection Material Brass: CuZn39Pb3 / MS58 Power Cable Length 3.0 m Power Cable Type Screened; Non Halogen Free |
Please Contact Us to Order to offer competitive prices and delivery time for Interroll - MI-DM0080 DM0803-AAA01D0U0LJH-600mm Motor number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
