BRAND | CD AUTOMATION |

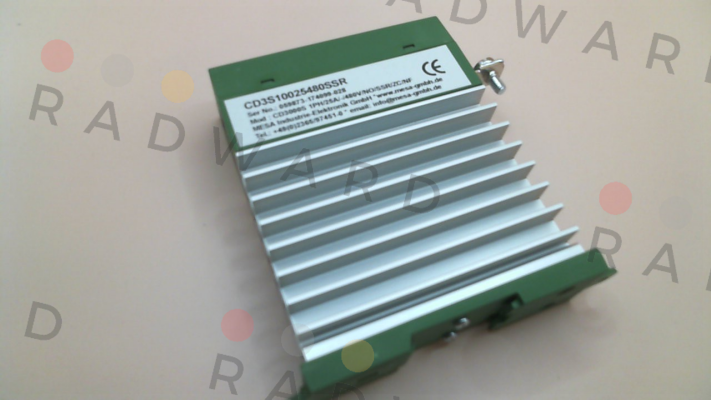

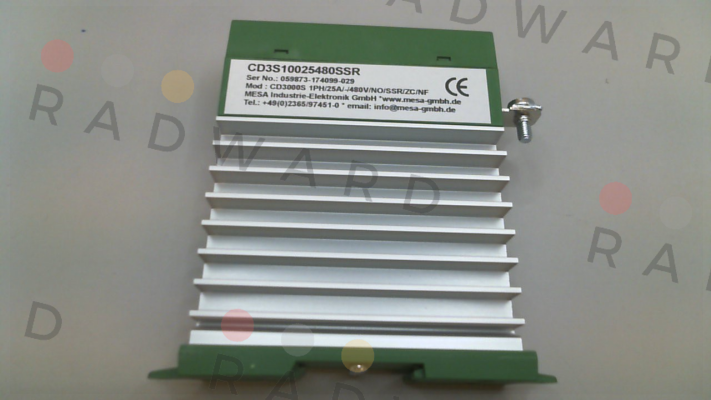

Product | Typ: CD3000S 1PH/25A/-/480V/NO/SSR/ZC/NF |
Description | Thyristor controller series S |
Internal code | 4477364 |
Custom code | 85362010 |
Technical specification | Item number CD3S10025480SSR (CD3S10025480SRN00C0N) A.no.: G.no.: - Circuitry: single-phase controller, zero crossing switch - Load current: 25 A (T40°C), 20A (T50°C) - Load voltage: up to 480 V - Vdrm: 1200V - ITSM (10ms): 350A - I²t (tp=10ms): 610 A²s - Auxiliary voltage: without - Control: logic (OFF < 1.0 Vdc, ON 4... 30 Vdc) 5 Vdc (typ. 14 mA) - dimensions: 30 x 120 x 120 mm (WxHxD) ideal for heating control with resistive load (zero crossing) - thyristors connected in antiparallel - CE mark Saves space thanks to integrated heatsink - RC circuit and varistor integrated - LED status display - DIN rail mounting or screw mounting |
Please Contact Us to Order to offer competitive prices and delivery time for CD AUTOMATION - Typ: CD3000S 1PH/25A/-/480V/NO/SSR/ZC/NF Thyristor controller series S number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
