BRAND | Ephy Mess |
Product | PR-SPA-EX-LTH /986030315000001 |
Internal code | 4653964 |
Custom code | 90259000 |

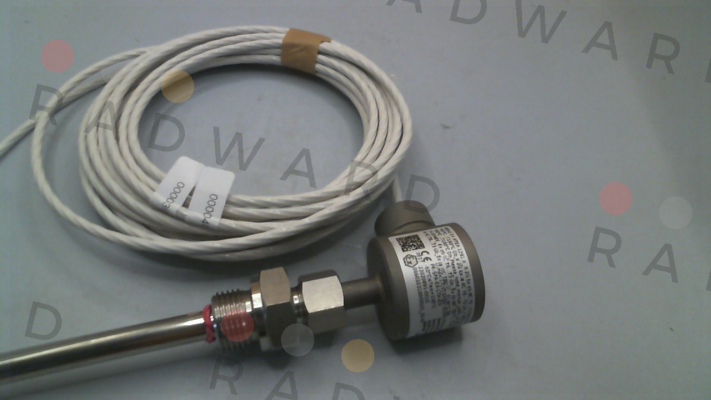

Technical specification | PR-SPA-EX-LTH IBExu 14 ATEX 1291 X, II 2G Ex eb IIC T6... T3 Gb II 2D Ex tb IIIC T80°C... T180°C Db please_note_manual_point_10 IECEx IBE 14.0048X, Ex eb IIC T6... T3Gb Ex tb IIIC T80°C... T130°C Db screw-in resistance thermometer, LT-38, 2Pt100, 3-wire circuit Class A ±0.15°C at 0°C acc. to DIN EN 60751 connection head EM38, stainless steel Dim.: ø10x190mm/240mm, Lid: no, Potted: yes cable outlet: G 1/4" VSB: movable, stainless steel, G 1/2"/SW 27 Cutting ring: stainless steel, ø10.1mm Supply cable: hose line 1x [6xAWG 22/19-Cu-tin-plated/FEP/FEP, kl=6000mm, Aø: 4.30mm] WH (2xRd/Wh/2xBK/Ye), Measuring range: -60°C... +180°C Ambient temperature: -60°C... +100°C Dielectric strength: 2.5 kV AC. 50 Hz/1min. Calibration at 0/50/70/110/120°C Country of origin: Germany AL: N/ECCN: N/HS/Custom Tariff: 90259000 Net weight: 655 g/piece |
Please Contact Us to Order to offer competitive prices and delivery time for Ephy Mess - PR-SPA-EX-LTH /986030315000001 number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
