BRAND | Interroll |

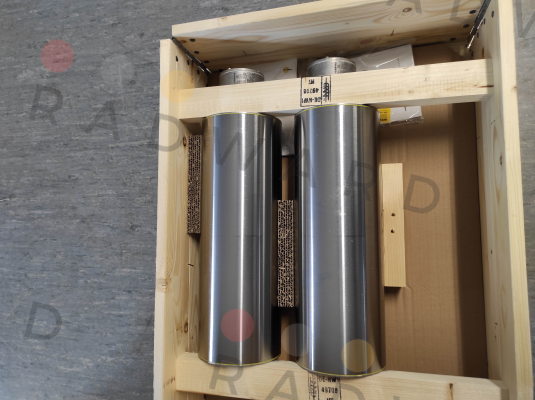

Product | MI-DM0165 DM1653-AAA06A0E0DGA-457mm |
Internal code | 4448661 |
Custom code | 84313900 |
Technical specification | Ser.No. 12231701 Product name DM 0165 asynchronous 3-phase Protection grade IP 69K Pipe length (SL) 450.0 mm Drum width (FW) 457.0 mm Installation length (EL/LW/BF) 490.0 mm Axis total length (AGL) 580.0 mm power 2,200 W Number of poles winding 2 Torque [Nm] 139.5 Tension force 1.701 N Gear ratio (i) 19.64 Gearbox cast iron material designation: GGG-40 velocity at frequency 1 1,24 m/s frequency 1 50 Hz external connection diagram M45 high voltage 400 V low voltage 230 V Rated current, high voltage 4.55A Rated current, low voltage 7.85A velocity at frequency 2 1,49 m/s frequency 2 60 Hz high voltage 2 460 V low voltage 2 230 V Tube material steel: St37-2 /AISI 1015 Tube diameter (A) 164.0 mm Tube diameter (B) 162.0 mm Tubular shape crowned (standard) Lid A, standard design Lid B standard design Lid A Material ALU: EN-AC43400/AL239 Lid B Material ALU: EN-AC43400/AL239 Shaft A version standard Ø40mm Shaft B version standard Ø40mm Shaft A material stainless steel: 1.4305/303 Shaft B material stainless steel: 1.4305/303 shaft A diameter (D) 40,0 mm Shaft B diameter (D) 40,0 mm Wave A final area size (F) 30.0 mm Shaft B final area width (F) 30.0 mm Shaft A final surface length (C) 45.0 mm Shaft B final surface length (C) 45.0 mm Oil type mineral oil Electrical connection terminal box electric. Connection material ALU Alsi10mg (Fe)/AL239 |
Please Contact Us to Order to offer competitive prices and delivery time for Interroll - MI-DM0165 DM1653-AAA06A0E0DGA-457mm number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
