BRAND | Steimel |

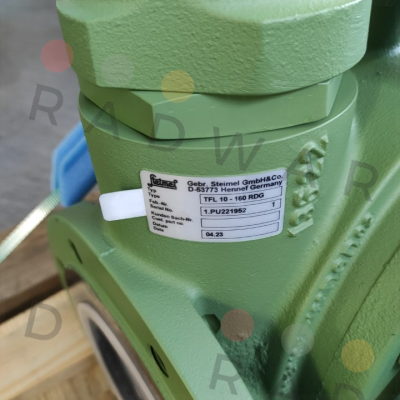

Product | TFL10-160RDG / BZP010FL160RD052R |
Description | gear pump |
Internal code | 4666913 |
Custom code | 84136039 |
Technical specification | TFL10-160RDG, gear pump, 9-16 bar NBR, GD, EC/HA drives, MD bearings Gear pump: TFL 10-160 RDG Product no.: BZP010FL160RD052R Dimension sheet: DMB00XFL-01R Spare part list: DET010FL160RD051R Suction and pressure connection:DN 125, PN 16 Pressure relief valve: 9 bar opening pressure Material finish: Case parts: EN-GJL-250 (GG-25) Waves: 16 Mn Cr S 5 gears: EN-GJS-400-15 (GGG-40), helical, ionized Shaft seal: radial shaft seal Elastomers: NBR Storage: multi-layer MD Conveying medium: lubricating oil Viscosity: 50-150 cSt Temperature: 10-60°C Delivery data: approx. 610 l/min. Pressure: 7 bar Speed: 970 rpm Rotation direction: right Paint: primer HDO058, green Type plate: ETY924-D-E—PE01 with free shaft end |
Please Contact Us to Order to offer competitive prices and delivery time for Steimel - TFL10-160RDG / BZP010FL160RD052R gear pump number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Pump without Motor
