| BRAND | Calectro |
| Product | ST-P-DA |

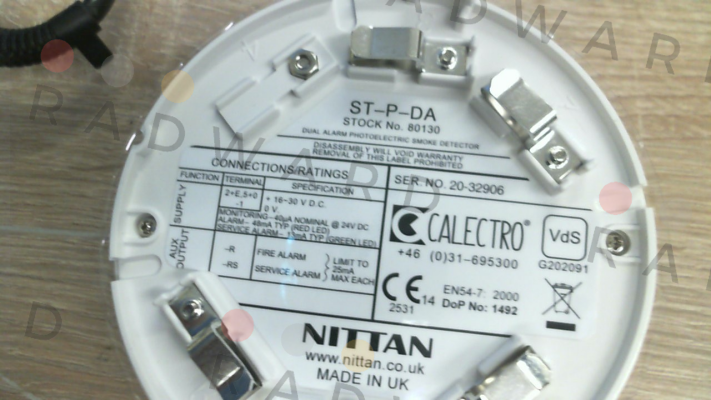

| Description | Optical smoke detector |
| Internal code | 552192 |
| Weight | 0.15 |
| Technical specification | Calectro optical smoke detector insert Operating voltage: 16-30 V DC Smoke detector module: White PVC with metal mesh around the chamber Base: White PVC Working current: about 0.04 mA Service alarm current: approx. 13 mA Alarm current: approx. 48 mA Operating temperature: -20 ° C to +50 ° C Max. Humidity: 99% RH Tests according to EN-54: LPC (England) Service alarm display: Green LED Fire alarm indicator: Red LED |
Please Contact Us to Order to offer competitive prices and delivery time for Calectro - ST-P-DA Optical smoke detector number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
2500PA PTH - OBSOLETE, REPLACEMENT CPS-24V
PTH PRESSURE TRANSDUCER
CPS-24V - obsolete, replaced by - CPS-A
Differential air pressure transmitter
Calectro Optischer Rauchmelder-Einsatz
Calectro Optical smoke switch 16-30 V DC, including short-circuit relay for use in raumen to fruezeitigen detections of Schwellbraenden fire and fire with smoke development .The sensor operates on the principle of scattered light, alarm relay with a potential-free changeover, including mounting base, the light transmitter and receiver are arranged in the Messa chamber so that the Lichtbuendel of the transmitter do not apply directly to the receiver kann.Erst the scattered light on suspended particles (Tyndall effect) reaches the receiver and is in an electrical signal umgesetzt.Eine green LED pollution (service), a red LED indicates the alarm. relay contact loads with 24 V / 1 A. Ambient temperature: minus 20 plus 50 degrees .Leistungsaufnahme: 2.64 watts; VDS test certificate: 205041
