BRAND | Baelz |
Product | 590-0201 DN40 |

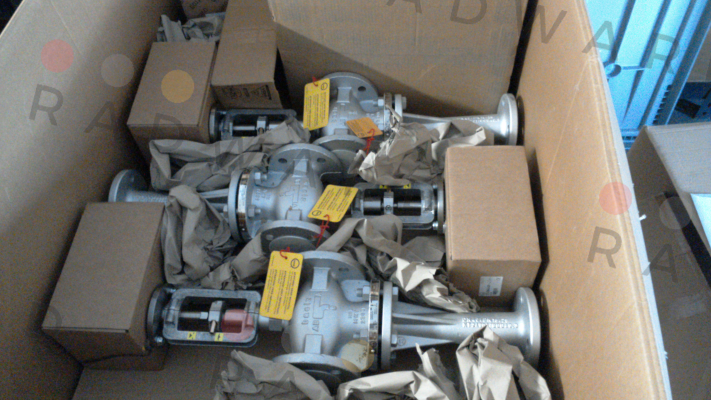

Description | Steam jet pump with actuator, mounted |
Internal code | 4265128 |

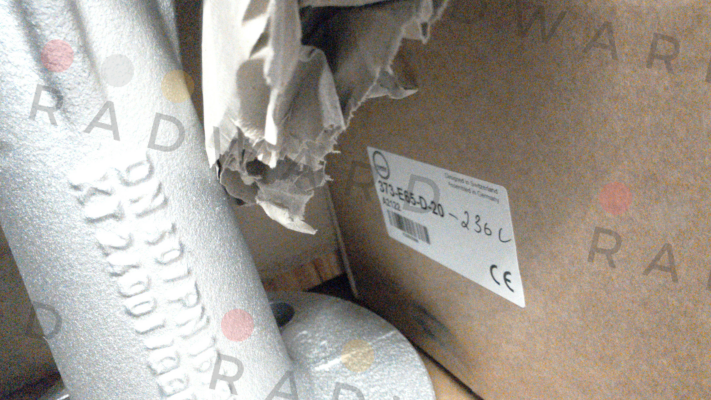

Technical specification | Vapour jet pump, Jetomat, without actuator 5.3103, max. 240°C; stroke 22 mm; spindle Ø 10 mm 590-1-DN 40-PN 16/25 Housing/Diffuser: GJS-400-18-LT - 5.3103 max. 240°C/22 bar- 50°C/25 bar DN 40, PN 16/25 p01:5.0 barue p03:3.7 barue p04:4.0 barue m01:320 kg/h m03:218 kg/h m04:538 kg/h Max. delta p drive: 25 bar Net Weight: 19.3kg Best. No. 373-E65-20-30-301 fail-safe motor lift drive 2000 N; 10,15.30 mm/min; 2-/3 pts; 0-10V/4-20 mA 373-E65-D-20-30-S21-230 Adjustable speed: 10, 15 or 30 mm/min Delivered condition: 10 mm/min mechanical hand grip Power failure: pressing (extending) Input signal: 0... 10 V or 4... 20 mA 2 or 3 point selectable Output signal: 10... 0 V (inverted) incl. drive stand and coupling (S21) Stroke max. 40 mm, self-adapting silicone-free design IP 66 (upright installation) 230 VC Net weight: 5.6 kg |
Please Contact Us to Order to offer competitive prices and delivery time for Baelz - 590-0201 DN40 Steam jet pump with actuator, mounted number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
