| BRAND | Ascon |

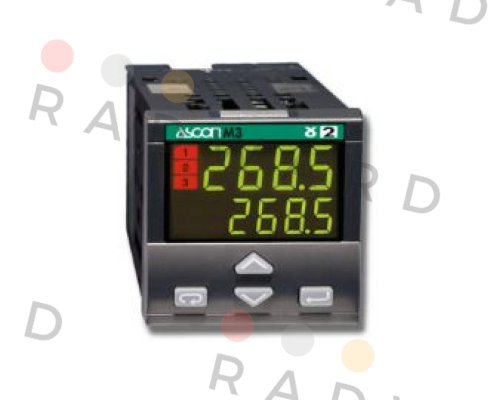

| Product | M3-3100-0200 (M3-3100-0200/9999) |
| Description | temperature controller |
| Internal code | 339615 |
| Weight | 1 |
| Custom code | 90328900 |
| Technical specification | M3-3100-0200 M3 series temperature controller (unconfigured) G.No.: A.No.: Customs Tariff No.:90328900 Country of origin:Italy supply voltage: 85... 265 V~ Output OP1/3: relay (2A/250V closer) Output OP2: relay (2A/250V closer) or logic (0/5VDC, 30mA) not galvanically isolated adjustable via internal jumpers Output OP4: none Serial port: none Interface protocol: none Transmitter supply: none Target value/special function: none User manual: German/English Front color: dark gray Can be freely configured as follows: input: PT100; thermocouple L, J, T, K, S; 0 (10)... 50 mV DC, 0 (4)... 20mA via shunt Output OP1: control or alarm output Output OP2: control or alarm output Output OP3: alarm output Output OP4: actual value or setpoint output (option) Control: ON/OFF or PID, heating or cooling Assignment: 1 output to control and 1 output as alarm o. both outputs as an alarm Options: power converter input, transmitter supply, Analog output (PV) |
Please Contact Us to Order to offer competitive prices and delivery time for Ascon - M3-3100-0200 (M3-3100-0200/9999) temperature controller number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Temperaturregler
Temperature Controller
Temperature controller series M3 (unconfigured)
M3-5107-0200/9999 (M3-5107-0200)
Temperaturregler Serie M3 (unkonfig)
Transmitterversorgung und Analog-Ausgang
temperature controller
thermostat
(Controller / program controller series M5-3100-1200 A-No .: G-No .: Front: 48 x 48 mm Supply voltage: 100 ... 240 V, 50/60 Hz Logic inputs: 2 Auxiliary input: no Output OP1: relay (2A / 250V contact) Output OP2: relay (2A / 250V contact) Output OP3: relay (2A / 250V contact) Serial interface: no Interface protocol: no Actual value OP4: no Front color: dark gray Setpoint program: up to 16 segments can be configured as follows: Input: PT100; Thermocouple J, L, T, K, S, R, T; 0 ... 50 mV DC 0 (1) .... 5 V DC; 0 .... 10V DC, 0 (4) ... 20 mA Control: ON / OFF, PID, heating or cooling, Heating / cooling, 3 pt step Options: ext. Setpoint, current transformer Entrance, continuous control output, or serial interface)
.Regler Series M5-3101-0200 (unkonfiguriert)
Policy
.regler
HEAT INDICATOR
M9-3151-0000 price valid only in 6-pack
user manual in English only (Gewicht 250g)
M9-3151-0000/AHL OEM/Kundenspezifisch
regulator Type: M9-3151-0000 / AHL Case dimensions: 48 x 48 mm Power supply: 100 ... 240V AC with 2 relay outputs Serial interface RS485 + IPOT
