PR-SPA-NA-LTH - Ephy Mess United Kingdom Sales

BRAND	Ephy Mess
Product	PR-SPA-NA-LTH
Description	termocouple
Internal code	4682698
Custom code	90259000

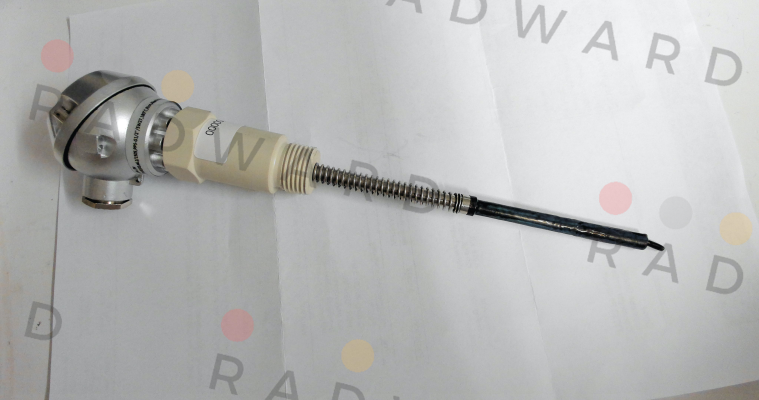

Technical specification	screw-in resistance thermometer, LT-MA, 1Pt100, 3-wire circuit Class B ±0.3°C at 0°C in accordance with DIN EN 60751 MA connection head, aluminum Size: ø6.2x150mm, PTFE, cover: yes, Type of connection in the head: clamp base Spilt: no Cable outlet: PG 9 - pressure screw VSB: springy, PPS, G 1/2"/SW 27 Clamped installation length: 120mm Relaxed installation length: 150mm Measurement range: -40°C... +180°C Ambient temperature: -40°C... +100°C Insulation resistance: ≥ 200 MΩ/500 VDC IP protection class: IP 54 (only applies to the sensor head) Protection tube insulated up to stop ring

Please Contact Us to Order to offer competitive prices and delivery time for Ephy Mess - PR-SPA-NA-LTH termocouple number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.

WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
